Ced

Ced is an editor for electronic drawings. I use Ced to create schematics for my electronic projects.


Ced 8

ced8

Years: 1986-1993
Language: E Language
Size: 4K lines

This is the original Ced running under EDIX/Edwin. Ced 8 developed the algorithms, data structures, file formats, and command set used by the modern Ced. The electronic symbols were created with a companion editor called Defsym.

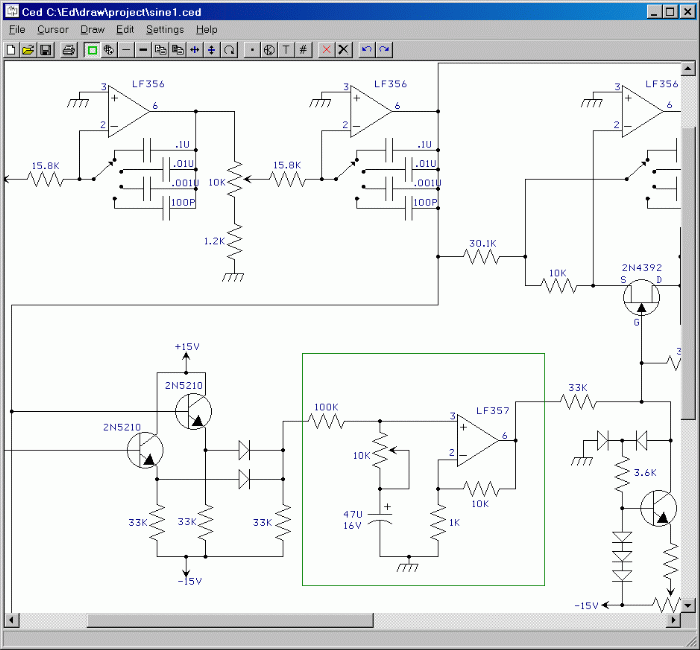

Ced

ced

Years: 1995-2001
Language: C language
Size: 8K lines

This is Ced rewritten in the C language and running under Windows. One nice property of all three editors (Ced, MindsEye, and the GeniusWriter) is that they present consistent user interfaces and employ similar internal algorithms and data structures.
